Configuring HTTPS for Jenkins on the All-in-One Server
In my last blog post I registered a new domain name and installed a Let’s Encrypt certificate to configure HTTPS, but now I reconfigured it so Jenkins would be secured too and could be reached on https://imade-aserver.xyz/jenkins
.
Updating the config file for HTTP
I used the Jenkins documentation to configure Jenkins to work with HTTPS. The config file I created when installing Apache needs to be updated to redirect all traffic to https:
sudo nano /etc/apache2/sites-available/imade-aserver.xyz.conf
<VirtualHost *:80>
ServerName imade-aserver.xyz
Redirect permanent / https://imade-aserver.xyz/
</VirtualHost>
Updating the config file for HTTPS
There is actually a separate config file for the https portion of the VirtualHost configuration:
sudo nano /etc/apache2/sites-available/imade-aserver.xyz-le-ssl.conf
<IfModule mod_ssl.c>
<VirtualHost *:443>
ServerAdmin webmaster@localhost
ServerName imade-aserver.xyz
ServerAlias www.imade-aserver.xyz
ProxyPreserveHost On
ProxyRequests Off
AllowEncodedSlashes NoDecode
<Proxy *>
Order deny,allow
Allow from all
</Proxy>
ProxyPass /jenkins http://127.0.0.1:8080/jenkins nocanon
ProxyPassReverse /jenkins http://127.0.0.1:8080/jenkins
ProxyPassReverse /jenkins http://imade-aserver.xyz/jenkins
ProxyPass / http://127.0.0.1:3000/
ProxyPassReverse / http://127.0.0.1:3000/
ErrorLog ${APACHE_LOG_DIR}/error.log
CustomLog ${APACHE_LOG_DIR}/access.log combined
Include /etc/letsencrypt/options-ssl-apache.conf
SSLCertificateFile /etc/letsencrypt/live/imade-aserver.xyz/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/imade-aserver.xyz/privkey.pem
</VirtualHost>
</IfModule>
After making changes to the Apache configuration I had to restart Apache:
sudo systemctl restart apache2
Update the Jenkins arguments
The jenkins arguments needed to be updated to listen to requests from localhost and configure it to be located at the subdirectory /jenkins.
sudo nano /etc/default/jenkins
This is only the very last argument, I left the rest of the file as default:
JENKINS_ARGS="--webroot=/var/cache/$NAME/war --httpPort=$HTTP_PORT --httpListenAddress=127.0.0.1 --prefix=/jenkins
After making changes to the Jenkins configuration I also had to restart Jenkins:
sudo systemctl restart jenkins

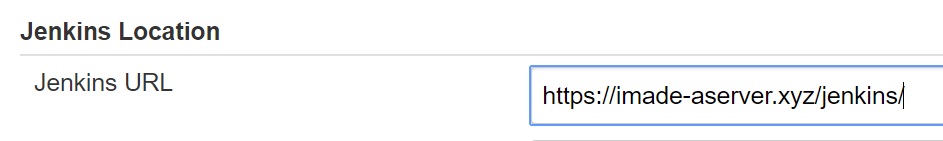

Configure Jenkins’ location in its own settings
I went to Jenkins > Manage Jenkins > Configure System
and updated the location to be the subdirectory:
Delete the firewall rule for port 8080
Now that I’m accessing Jenkins from behind the apache firewall, I don’t want the default jenkins port to be exposed anymore so I deleted the ufw rule.
sudo ufw delete allow 8080
sudo ufw status
Status: active
To Action From
-- ------ ----
OpenSSH ALLOW Anywhere
Apache Full ALLOW Anywhere
OpenSSH (v6) ALLOW Anywhere (v6)
Apache Full (v6) ALLOW Anywhere (v6)
Accessing the Node-App and Jenkins
After the above configuration I can now access the Node App at: https://imade-aserver.xyz
and jenkins at https://imade-aserver.xyz/jenkins
and if I try accessing either of them through standard HTTP it will redirect to HTTPS. It also works at www.imade-aserver.xyz!
Avoiding the Jenkins “Reverse Proxy is Broken” error

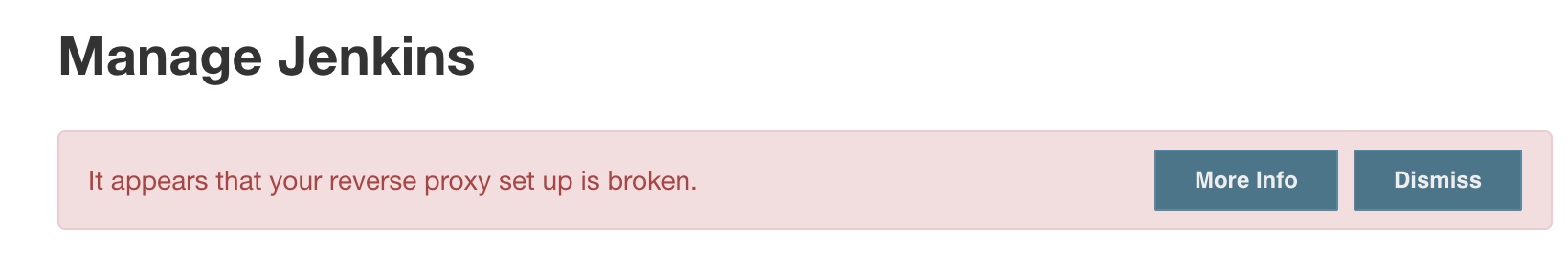

So after setting up the above I got an error message It appears that your reverse proxy setup is broken
:
I found from this link that I needed to add the RequestHeader
parameters to the /etc/apache2/sites-available/imade-aserver.xyz-le-ssl.conf
file, here is the completed file:
<IfModule mod_ssl.c>
<VirtualHost *:443>
ServerAdmin webmaster@localhost
ServerName imade-aserver.xyz
ServerAlias www.imade-aserver.xyz
ProxyPreserveHost On
ProxyRequests Off
AllowEncodedSlashes NoDecode
<Proxy *>
Order deny,allow
Allow from all
</Proxy>
ProxyPass /jenkins http://127.0.0.1:8080/jenkins nocanon
ProxyPassReverse /jenkins http://127.0.0.1:8080/jenkins
ProxyPassReverse /jenkins http://imade-aserver.xyz/jenkins
ProxyPass / http://127.0.0.1:3000/
ProxyPassReverse / http://127.0.0.1:3000/
ErrorLog ${APACHE_LOG_DIR}/error.log
CustomLog ${APACHE_LOG_DIR}/access.log combined
Include /etc/letsencrypt/options-ssl-apache.conf
SSLCertificateFile /etc/letsencrypt/live/imade-aserver.xyz/fullchain.pem
SSLCertificateKeyFile /etc/letsencrypt/live/imade-aserver.xyz/privkey.pem
RequestHeader set X-Forwarded-Proto "https"
RequestHeader set X-Forwarded-Port "443"
</VirtualHost>
</IfModule>
Now there are no errors in Jenkins and I can access both Jenkins and the Node-App over HTTPS!
