Refreshing this Blog - Category and Project Layouts
In this post I build the “Project” and “Category” page layout, fix the post categories and finalise Stage 1 of my new refreshed blog using Bootstrap 4, Jekyll and GitHub Pages.
Project Pages, Categories and Breadcrumbs

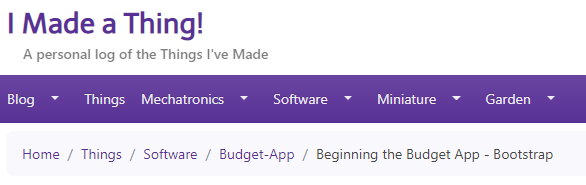

Breadcrumbs
I’d decided that I want breadcrumbs across the majority of my site, except for the homepage, but this also meant a complete overhaul to the way I had categorised all my posts. There was a lot of back-and-forth deciding how exactly I wanted these to look but here I’ve just skipped to the final design.
I settled on having the categories as links which would be easily configurable from the post metadata. All posts start with “Things” (with other non-post pages neglecting this category) and then the category of the “Thing” which currently is: Mechatronics, Software, Miniature, Garden and then finally the project (or “Other”). This way, the breadcrumbs start with “Home” then iterate over the categories of the post to create the breadcrumbs.
This change meant I had to go back and fix all of my previous posts to fit this format, and I made some adjustments to align some of the tags too. After all, what’s an overhaul without changing everything?
Example page metadata with the new categories:
---
layout: post
title: "Refreshing this Blog - Category and Project Layouts"
date: 2020-07-28
categories: Things Software Blog
tags: Jekyll Blog Github-Pages Bootstrap
---
And the breadcrumbs component:
breadcrumbs.html
<nav aria-label="breadcrumb">
<ol class="breadcrumb">
<li class="breadcrumb-item"><a href="/">Home</a></li>
{% if page.categories %}
{% assign url = site.url %}
{% for category in page.categories %}
{% assign url = url | append: "/" %}
{% assign url = url | append: category %}
<li class="breadcrumb-item">
<a href="{{ url }}">
{{ category }}
</a>
</li>
{% endfor %}
{% endif %}
{% if page.breadcrumbs %}
{% assign url = site.url %}
{% for breadcrumb in page.breadcrumbs %}
{% assign url = url | append: "/" %}
{% assign url = url | append: breadcrumb %}
<li class="breadcrumb-item">
<a href="{{ url }}">
{{ breadcrumb }}
</a>
</li>
{% endfor %}
{% endif %}
<li class="breadcrumb-item active" aria-current="page">{{ page.title }}</li>
</ol>
</nav>
Category Layout
In the previous website I hadn’t used Jekyll to create a category or project page so here I took apart one of the copy/pasted HTML pages and converted it to a parameterised page that I could fill out with markdown and metadata instead of repeating HTML.
I ended up with quite a bit of metadata needed for each category page; I defined the categories as the “Things”: Mechatronics Things, Software Things, Mini Things and Garden Things. I gave the option of a hero image or defining the projects to be featured on a carousel.
mechatronics.md
---
layout: category
group: Mechatronics
title: Mechatronics Things
projects:
donkeycar: "Basil Faulty the DonkeyCar"
fyp: "My Final Year Projects"
orrery: "An Orrery: Model of the Solar System"
printer: "A Prusa i3 MK2 3D Printer"
cube4x4x4: "A 4x4x4 LED Cube"
otherMecha: "Other Mechatronics Things"
hero_image:
path: /images/pickAndPlace/11_complete_setup.jpg
alt: Mechatronics Things
carousel_images:
- path: /images/donkeyCar/buildDay/06_basil.jpg
alt: Basil Faulty the Autonomous DonkeyCar
active: active
link: /things/mechatronics/donkeycar/
- path: /images/mechatronicsFYP/10_package_box.jpg
alt: Package Box for my Final Year Project
link: /things/mechatronics/fyp/
- path: /images/orrery/finished_04.jpg
alt: "Orrery: A model of the Planets"
link: /things/mechatronics/orrery/
breadcrumbs:
- Things
---
There’s also the basic list of projects below like in the old design; I’d like to redo this part shortly but I think I just ran out of steam for now! Here is the current version of the category layout:
category.html
---
layout: default
---
{% assign carousel_number = page.carousel_images.size | minus: 1 %}
<div class="col-xl-8 col-lg-9">
{% include breadcrumbs.html %}
<article>
<h1>
{{ page.title }}
</h1>
<div id="carouselExampleIndicators" class="carousel slide py-2" data-ride="carousel">
<ol class="carousel-indicators">
{% for i in (0..carousel_number) %}
{% if i == 0 %}
{% assign active = 'active' %}
{% endif %}
<li data-target="#carouselExampleIndicators" data-slide-to="{{ i }}" class="{{ active }}"></li>
{% endfor %}
</ol>
<div class="carousel-inner">
{% for image in page.carousel_images %}
<div class="carousel-item {{ image.active }}">
<img class="d-block w-100" src="{{ site.baseurl }}{{ image.path }}" alt="{{ image.alt }}">
<div class="carousel-caption d-none d-md-block">
<a class="white-text" href="{{ site.baseurl }}{{image.link }}" alt="{{ image.alt }}">
<h3>{{ image.alt }}</h3>
</a>
</div>
</div>
{% endfor %}
</div>
<a class="carousel-control-prev" href="#carouselExampleIndicators" role="button" data-slide="prev">
<span class="carousel-control-prev-icon" aria-hidden="true"></span>
<span class="sr-only">Previous</span>
</a>
<a class="carousel-control-next" href="#carouselExampleIndicators" role="button" data-slide="next">
<span class="carousel-control-next-icon" aria-hidden="true"></span>
<span class="sr-only">Next</span>
</a>
</div>
<div class="pt-2 page-content">
{{ content }}
</div>
<div class="pt-6">
<h2>{{ page.posts_title }}</h2>
</div>
<div class="pt-2">
<ul>
{% for project in page.projects %}
<li><h4>
<a href="{{ site.baseurl }}/things/{{ page.group }}/{{ project[0] }}">
{{ project[1] }}
</a>
</h4>
<p class="pDate">{{ post.date | date: '%B %d, %Y' }}</p>
<p>{{ post.excerpt }}</p></li>
{% endfor %}
</ul>
</div>
</article>
</div>

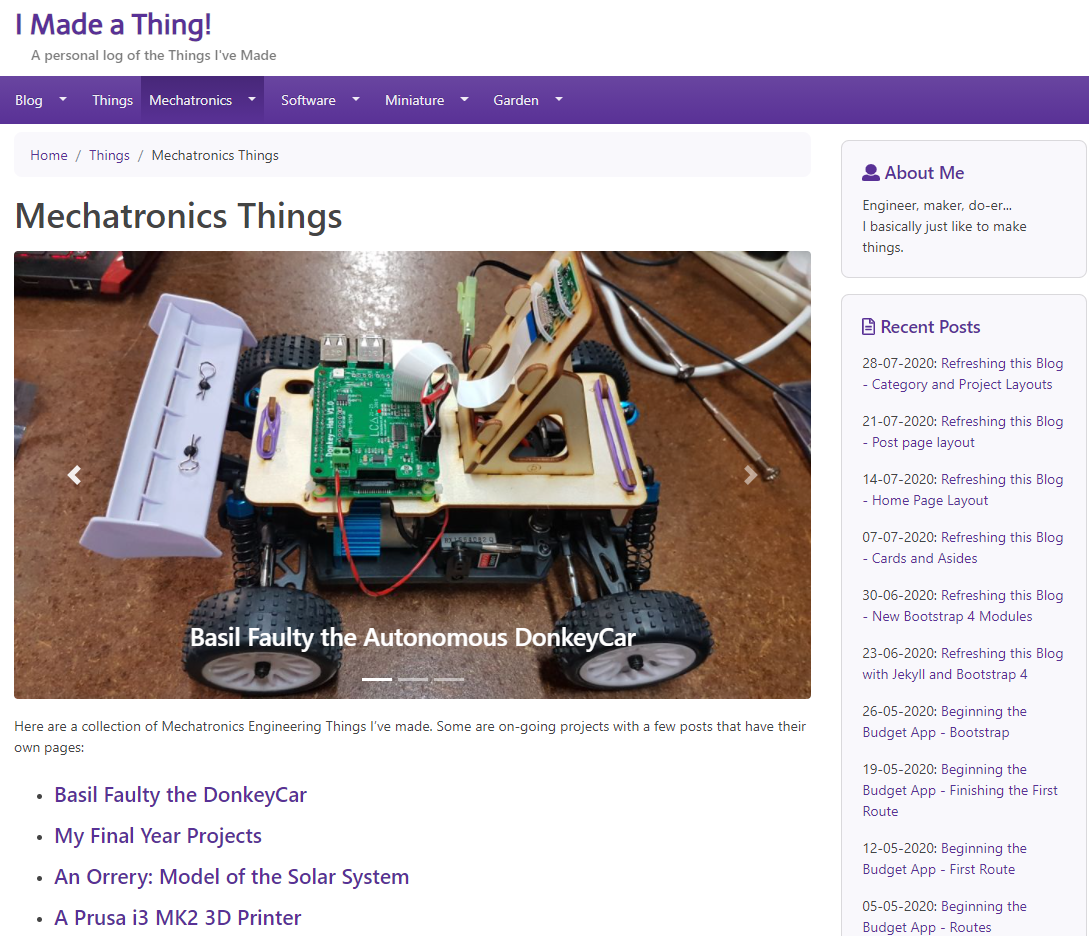

Done! This layout also inherits from the default layout so it’s got all of the header, footer, navbar and asides that I’d developed previously.
Project Layout
I also had to parameterise the project layout from all its repeated code. The project layout is slightly different to the category in that I don’t use the carousel - just a hero image. I still added a fair few configurable fields though:
donkeycar.md
---
layout: project
group: Mechatronics
title: Basil Faulty the DonkeyCar
hero_image:
path: /images/donkeyCar/setup/05_basil.jpg
alt: Basil Faulty the DonkeyCar
posts_title: "Here are the posts I have made so far about Basil Faulty the DonkeyCar:"
category: DonkeyCar
breadcrumbs:
- Things
- Mechatronics
---
And finally the html with jekyll/liquid tags:
project.html
---
layout: general
---
{% assign carousel_number = page.carousel_images.size | minus: 1 %}
<div class="pt-2">
<p>{{ page.description }}</p>
</div>
<div class="hero-image">
<img src="{{ site.baseurl}}{{ page.hero_image.path }}" alt="{{ page.hero_image.alt }}" />
</div>
<div class="pt-2 page-content">
{{ content }}
</div>
<div class="pt-6">
<h2>{{ page.posts_title }}</h2>
</div>
<div class="pt-2">
{% for post in site.categories[page.category] reversed %}
<h4>
<a href="{{ post.url }}">
{{ post.title }}
</a>
</h4>
<p class="pDate">{{ post.date | date: '%B %d, %Y' }}</p>
<p>{{ post.excerpt }}</p>
{% endfor %}
</div>

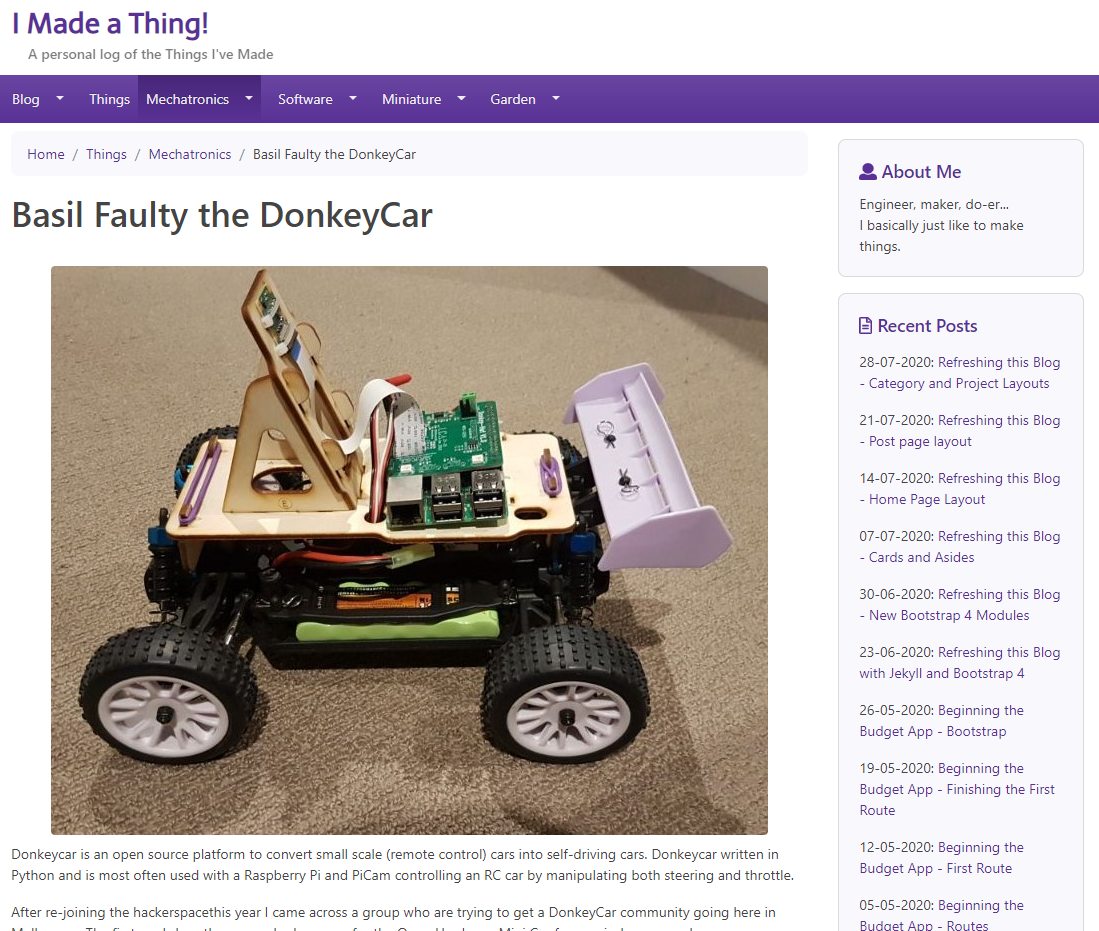

And here is the finalised project page, again utilising many of the previous components I’d developed:
I think I’m finally done for the Blog refresh! I made a new Blog using Jekyll, Bootstrap and GitHub Pages!
